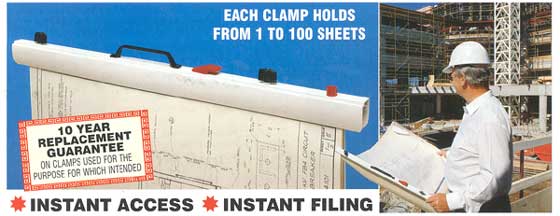

The
clamps come in four (3) sizes, A0 (36"), A1 (25.5"), and
A2 (18") and are used to clamp together plans, tracings etc.
for convenient handling, storage and carrying. SIMPLE
TO USE…lay clamps on side, loosen wingnuts
and slide sheets into the open jaws. Simply tighten the wingnuts and remember the maximum grip can be obtained with
finger pressure alone.
MANUFACTURE
DETAIL:
Mobiles and wallracks are made
of steel powdercoated in epoxy white and charcoal paint
and are supplied in flat carton packs ready for assembly.
Clamps are made of aluminum, powdercoated in white scratch
resistant enamel paint, with charcoal handle and wingnuts and red support hardware.
12 A1 or A2 Clamps
12 A0 or B1 Clamps
22 A1 or A2 Clamps
22 A0 or B1 Clamps
22 A1 or A2 Clamps
22 A1 or A2 Clamps
5 Clamps Any Size
10 Clamps Any Size
20 Clamps Any Size
5 Clamps Any Size
THE
CLAMP HANGS ON
MOBILE
TROLLEYS which provide the convenience of being able to move the
system within an office or into secure rooms overnight
WALL
MOUNTED RACKS are inexpensive storage, attached to walls by
screwing into the wall studs. (All screws supplied).
MOBILE
A0
For
36" Clamps
MOBILE
A1
For
25.5" & 18" Clamps
500
WALL RACK 1000
WALL RACK Holds
clamps of any size and file up to 500 or 1000 sheets, parallel to
the wall. Can also be hung in cupboards or on fixed partitions.
Racks can be assembled for left or right access.
2000
WALL RACK This
unit holds 2000 sheets on 20 clamps of any size. While the other
racks file parallel to the wall, this unit, due to it's large
capacity is mounted at right angles. Will hold any size clamp or a
combination of the different sizes.
A0
MOBILE 52" HIGH
Mod. 1000 Holds 12 Clamps
Mod. 2000 Holds 22 Clamps
A1
MOBILE 42" HIGH
Mod. 1000 Holds 12 Clamps
Mod. 2000 Holds 22 Clamps
PARTITION
BRACKET Hangs
on freestanding partitions. Special hanging levels and widths
custom made. Holds 5 clamps any Size.
Saves
90% on floor space. Drawings
instantly accessible and easily filed. Easy
to use - simply grasp the clamp handle, tilt and withdraw from the
system - no lifting, no fuss. The
strength inherent in the design and construction of the mobiles
and their high quality casters, makes them easy to move even when
fully laden. Holds
1200 or 2200 sheets on 12 or 22 clamps.
Illinois
Blueprint Corporation
800 S. W. Jefferson Avenue
Peoria, IL. 61605-3943
PH. (309) 676-1300
FAX. (309)-676-1310
Saves
90% on floor space.
